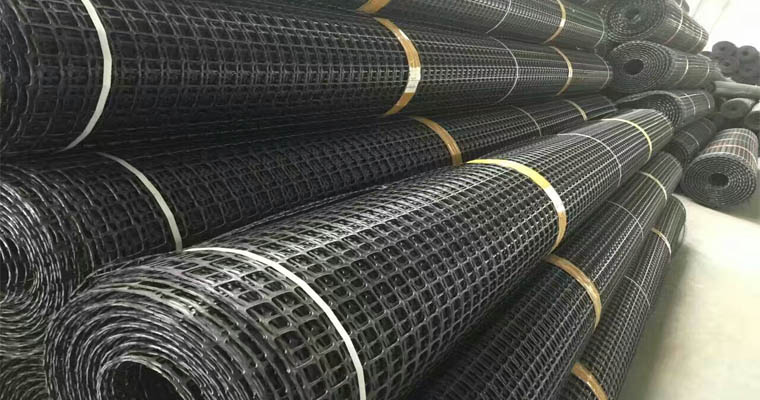

Biaxial Introduction

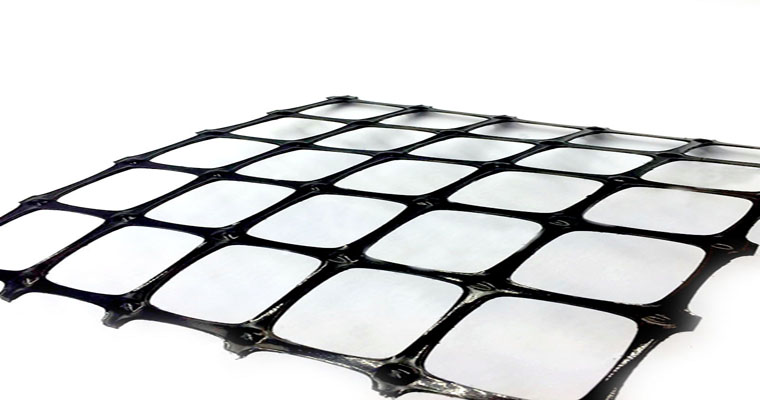

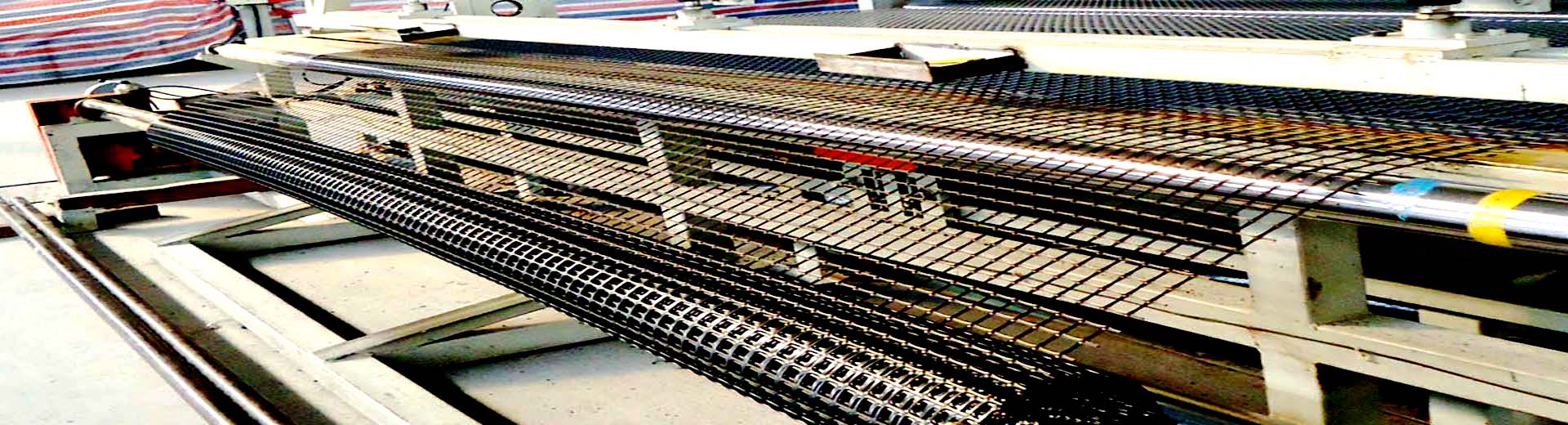

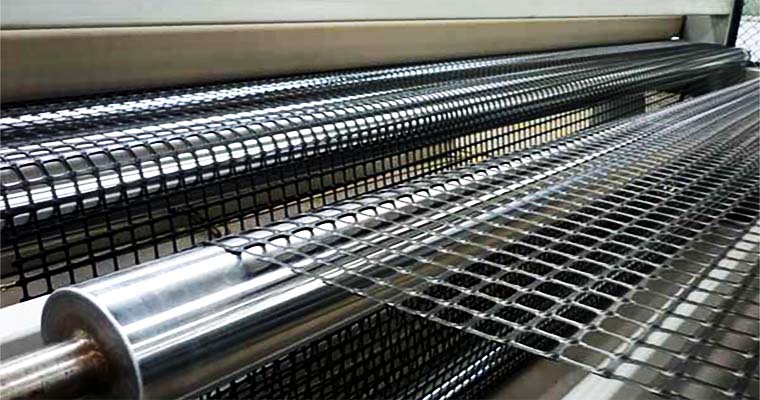

Biaxial geogrid, made of high molecular polymer, is extruded into sheet andthen punched into regular mesh pattern, and finally stretched in longitudinaland transverse directions.
Features:
1.With high tensile strength in longitudinal and transverse directions
2.This structure can provide an chain system of more effective force bearing and
spreading for the soil.
Application:

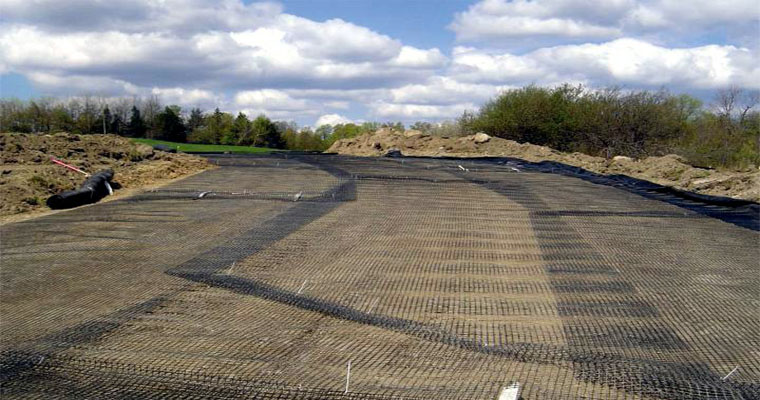

Mainly applied in highway, railway, slope protecting projects etc.
1)strengthen land loading capacity and extend its service life.
2) convenient to construct ; reducing project cost and maintenance cost
|
Item
|
TGSG15-15
|
TGSG20-20
|
TGSG25-25
|
TGSG30-30
|
TGSG35-35
|
TGSG40-40
|
TGSG45-45
|
TGSG50-50
|
|
MD-Tensile Strength≥(kN/m)
|
15
|
20
|
25
|
30
|
35
|
40
|
45
|
50
|
|
TD-Tensile Strength≥(kN/m)
|
15
|
20
|
25
|
30
|
35
|
40
|
45
|
50
|
|
MD-Nominal Elongation≤(%)
|
15
|
|||||||
|
TD-Nominal Elongation≤(%)
|
13
|
|||||||
|
MD-Tensile Strength at 2% Strain≥(kN/m)
|
5
|
7
|
9
|
10.5
|
12
|
14
|
16
|
17.5
|
|
TD-Tensile Strength at 2% Strain ≥(kN/m)
|
5
|
7
|
9
|
10.5
|
12
|
14
|
16
|
17.5
|
|
MD-Tensile Strength at 5% Strain≥(kN/m)
|
7
|
14
|
17
|
21
|
24
|
28
|
32
|
35
|
|
TD-Tensile Strength at 5% Strain≥(kN/m)
|
7
|
14
|
17
|
21
|
24
|
28
|
32
|
35
|
